1.25Gbps CWDM SFP Optical Transceiver | High Quality 40km Reach TK-XX24-3LCD40

Receiver Overload : -3 dBm

Fiber Brand : Corning, YOFC, OFS, Draka

Spectral Width (-20dB) : 1 nm

Extinction Ratio : 9 dB

Operating case temperature : 0 to +70°C

Product Name : 1.25Gbps CWDM SFP Optical Transceiver 40km Reach High Quality TK-XX24-3LCD40

Receiver Sensitivity : -23 dBm

Data Input Swing Differentia : 400-1800 mV

Brand Name : DF/OEM/Nuetral

Model Number : 1.25Gbps CWDM SFP Optical Transceiver

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Place of Origin : China, Shenzhen

MOQ : negotiable

Price : negotiable denpend on QTY

Payment Terms : T/T,/Paypal,L/C

Supply Ability : 1000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Packaging Details : Blister box+Carton

Side Mode Suppression Ratio : 30 dB

Average Output Power : -5-0 dBm

Warranty : 1 years, lifetime maintenance

Contact Now

1.25Gbps CWDM SFP Optical Transceiver | High Quality 40km Reach TK-XX24-3LCD40
1.25Gbps CWDM SFP Optical Transceiver Overview

The SFP transceivers are high-performance, cost-effective modules supporting dual data-rate of 1.25Gbps and 40km transmission distance with single-mode fiber.

The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

1.25Gbps CWDM SFP Optical Transceiver Applications
  • Gigabit Ethernet
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems
1.25Gbps CWDM SFP Optical Transceiver Features
  • Data-rate of 1.25Gbps operation
  • 1310nm FP laser and PIN photo detector for 2km transmission with MMF
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic Monitoring: Internal Calibration or External Calibration
  • Compatible with SONET OC-24-LR-1
  • RoHS compliant
  • +3.3V single power supply
  • Operating case temperature range: 0°C to +70°C (Commercial) / -40°C to +85°C (Industrial)

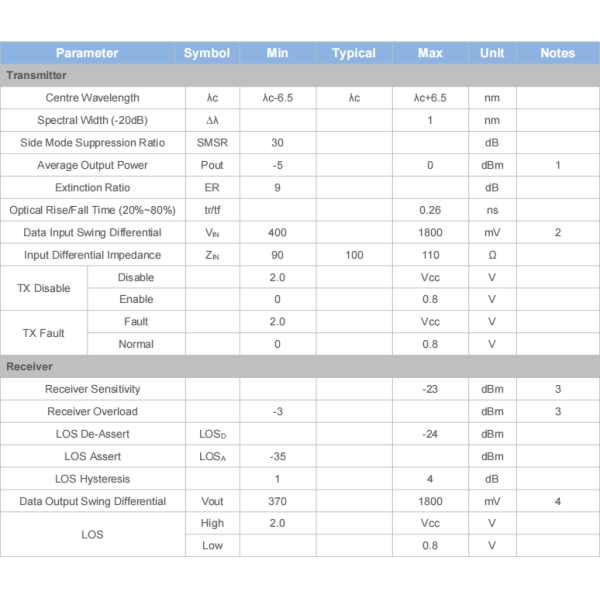

1.25Gbps CWDM SFP Optical Transceiver Specifications
1.25Gbps CWDM SFP Optical Transceiver | High Quality 40km Reach TK-XX24-3LCD40

Notes:

  • Connected directly to TX data input pins. AC coupled thereafter.
  • Or open circuit.
  • Into 100 ohms differential termination
  • 20 - 80%
  • Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
  • Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.
